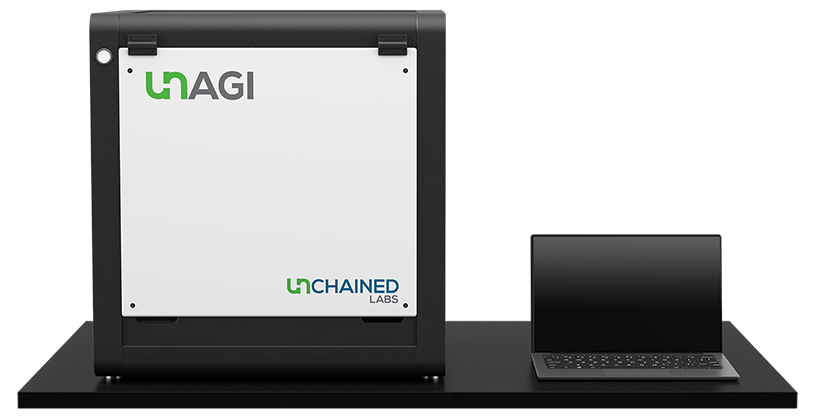

Unagi plus laptop Tilted Camera_BT product page

Unagi

The only completely hands-free benchtop buffer exchange solution

Bite-sized buffer exchange

Buffer exchange and concentration are two of the most annoying things you have to do before you can work with your sample. It takes forever, you physically have to be there and just when you think it’s done, you’re tweaking it again. Unagi is the first completely hands-free benchtop buffer exchange solution that’s made to take this not-so-fun task off your plate — so you can be anywhere else instead of tied to your bench. Get brochure.

  • Protein
  • mRNA & DNA
  • AAV
  • LNP

Want a quote?

Videos

Check out Unagi

Unchained tackles science in 5 with Unagi

Served up a’ la carte

Drop 1 to 8 of your samples into some Unas, twist them into the holder and boom, they’re ready to go. Each Una can handle from 0.5 to 8 mL of sample. They have regenerated cellulose (10, 30, and 100 kDa MWCOs) and polyethersulfone (30 and 100 kDa MWCOs) to make sure your samples stay put, don’t get absorbed, and the liquid passes right through — with ≥96% recovery.

Served-up-ala-carte-2
The secret sauce

The secret sauce

Unagi has the recipe for UF/DF buffer exchange dialed in. It checks the initial sample volumes with an ultrasonic sensor so it knows what it's working with. Next, it pressurizes each Una while gently mixing your samples to get things flowing. It checks the volume again and refills each Una with your new buffer. This process repeats until Unagi hits your target exchange percentage and volume.

Put in your order

Unagi is super easy to use — so everyone can get a taste. First choose the type of experiment you want to run. Then tell it what kind of molecule you’re exchanging, how much you have, and what buffer to exchange into. Last step is to input percent exchange and final volume if you want to concentrate your sample.

Unagi Home Screen_border
Get your fill

Get your fill

Now you just follow Unagi’s step-by-step instructions. Load up the tray of Unas filled with your samples in the front. Fill Falcon tubes with your buffers and plop them in on the left. Throw some tip racks in on the right and Unagi is ready to go. No joke, it’s that easy.

Let it roll

Hit start and let Unagi do its thing. Now you can walk away, but feel free to check on Unagi whenever you want. It’s tracking the number of exchange cycles completed, provides info on the current filtration cycle, and displays the percent exchanged for each sample. If you’re in a pinch, you can pause the run to take out samples that are done before the rest or keep it rolling. Either way, Unagi will tell you when it’s a wrap.

Let it roll_2
Take it down

Take it down

Some samples are too dilute and need a little TLC. Unagi can concentrate these samples to a usable range. Choose the Reduce Sample Volume application and Unagi will concentrate up to eight dilute samples from 48 mL down to 8 mL in a single run. From there, you can follow up with a buffer exchange run or concentrate them further.

Get the check

Unagi tracks every single move it made and documents everything that happened during the run. It kicks out a detailed report of final volumes and concentrations, flow rates for every cycle, and the final percent exchanged for each sample. These reports can easily be placed in a lab notebook, uploaded to a LIMs, or hung on your refrigerator.

Get the check

Learn more

Webinars

Virtual Seminar: Unagi is a state of total awareness …and now benchtop buffer exchange

Del Ray Jackson, PhD, Sr Product Manager, Unchained Labs

Live Demo: Pop in to see fast, easy, hands-free benchtop buffer exchange with Unagi

Del Ray Jackson, PhD, Sr Product Manager, Unchained Labs

Select Science Webinar: Take back your time with hands-free, benchtop buffer exchange on Unagi

Del Ray Jackson, PhD, Sr Product Manager, Unchained Labs

App Notes

Meet Unagi: Completely hands-free benchtop buffer exchange
Crank up LNP & AAV sample prep with Unagi

Technology

Ultrafiltration & Diafiltration (UF/DF)
